The stepper motor is a special motor specially designed for accurate control of position and speed. The biggest characteristic of stepper motor is “digital”. For each pulse signal from the controller, the stepper motor driven by its drive runs at a fixed angle.
Rtelligent A/AM series stepper motor is designed based on the Cz optimized magnetic circuit and adopts stator and rotator materials of high magnetic density, featuring a high energy efficiency.
Note: Model naming rules are only used for model meaning analysis. For specific optional models, please refer to the details page.
Note:NEMA 8 (20mm), NEMA 11 (28mm), NEMA 14 (35mm), NEMA 16 (39mm), NEMA 17 (42mm), NEMA 23 (57mm), NEMA 24 (60mm), NEMA 34 (86mm), NEMA 42 (110mm), NEMA 52 (130mm)
28/35/42/57/60/86/mm series
|
A+ |
A- |
B+ |
B- |
|
Red |
Blue |
Green |
Black |
110mm series
|
A+ |
A- |
B+ |
B- |
|
Red |
Green |
Yellow |
Blue |

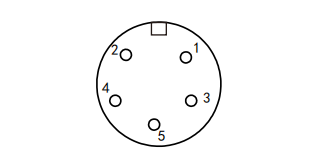

130mm series
|
1 |
2 |
3 |
4 |
5 |
|
A+ |
A- |
B+ |
B- |
NC |
